Well, guess who's still making sense of water flow through hose and pumps these days? (Yep, you got it. It's me.)

Today I finally figured out a point of confusion I'd had for weeks around the relationship between pressure and volume of flow out of a nozzle. Turns out the answer has to do with a new-to-me way of viewing pressure that offers some additional tools for reasoning about how water flow works.

Like many of my posts about the physics of firefighting, the target audience for this post might be just me. If you're not into firefighting or not into physics, you're welcome to read on, but at least you've now been warned.

Energy per volume

In short, previously I viewed pressure as force per area. You can see this deep-seated assumption in my previous posts about pressure from the atmosphere and from a stack of water. Turns out that it's sometimes more useful to view pressure as energy per volume. The units match up. But it makes some things easier to reason about and had the pleasant side effect of blowing my mind.

First off, why does this work? I'm going to get a little handwavy here, but if you think of pressure in those old terms of force over an area, imagine some water in a cylinder with a piston on top. Piston presses down with some amount of force (let's say that we're at equilibrium, for simplicity), so Newton's second law says that the water presses back up on the piston with the same amount of force. You can figure out the pressure by dividing the force by the cross section of the piston.

Now envision that we increase the pressure in the water somehow – maybe we attach a pump and start it up or something. The result, intuitively, is that the water can now press the piston upward. In other words, it can apply a force over a distance. Now, if you're a physics nerd like me, you might recognize that as the very definition of work. And work, according to the work-energy principle, is the amount of energy a system can do on the world around it. ¹ So our water can exert force over a distance on that piston (aka "do work on the piston"), and the amount of work it can do is related to the pressure. Now for the super handwavy part: where does volume come into it? In general, if you envision a tiny amount of water with a certain pressure, let's say a cubic centimeter, that water at that pressure will be able to push the piston a lot less far than a cubic meter at the same pressure. In other words, the amount of work that the water can do depends on its volume. ²

(If you want a more in-depth discussion of how you can view pressure as a volume-specific energy, check out this invaluable tec-science article).

Anyway, hopefully that clarifies things more than it muddies the metaphorical waters. In short, pressure in an incompressible fluid like water is energy per volume.

Who cares? Bernoulli's equation

Okay, but why does this matter? Can it help with understanding the relationship between pressure and volume of flow out of, say, a firefighting nozzle? The answer is a resounding yes, because it allows us to make statements about pressure based on the conservation of energy.

Before we get too much further, let's define three different types of pressure:

• Static pressure: this is probably the first thing you think about when I say "pressure:" the result of pushing on water, which results in the water pushing back on the container around it. We'll call it $p$, $p_{stat}$, or $p_{static}$ here. This is also the pressure you'll measure if you stick a gauge at a specific spot in a system.
• Hydrostatic pressure: If we're talking energy, one major thing we often think about is gravitational potential energy, which in general is $mgh$ for a mass $m$ that is elevated a height $h$ in the Earth's gravity. If we're talking volume (since we now view pressure as volume-specific energy), then we can reframe that using the liquid's density $\rho$: $p_{hydrostatic}=\frac{mgh}{V}=\frac{\rho Vgh}{V} = \rho gh$. Here I'll call this $p_{g}$ (for gravity).
• Dynamic pressure: just like hydrostatic pressure is the pressure equivalent of gravitational potential energy, dynamic pressure is the pressure equivalent of kinetic energy. It looks like this: $p_{dynamic} = \frac{\frac12 m v^2}{V}$, where $v$ is the water's velocity. Once again converting using the liquid's density and abbreviating $p_{dynamic}$ to $p_d$: $p_{d} = \frac{\frac12 \rho V v^2}{V} = \frac{1}{2}\rho v^2$.

Combining all of those, we can get the total energy in a chunk of water:

\begin{align} E &= p + p_g + p_d\\ &= p + \rho g h + \frac{1}{2}\rho v^2 \end{align}

Now for the magic: Energy is conserved. So that sum will be a constant across the distance of travel. If you know the energy at one point along a pipe/system, you know the total energy at another point too. (Let's leave branching systems aside for the moment.) The easiest way to see this is via an example. So let's take a look!

(Note: for this example I'll be ignoring friction loss in hoses, just for simplicity, and will be assuming all operations are happening with no real elevation changes. Similarly, let's say our pump is operating at a constant speed, rather than using a pressure governor.)

Let's turn off a nozzle

We've been fighting fire, and your nozzle operator has been flowing 125 gallons per minutes through your super snazzy combination nozzle at the end of an inch and three quarter hose line. It likes 100 psi at the nozzle, and as an excellent pump operator you're providing exactly the right pressure.

Now your nozzle person turns off the nozzle. What happens?

Intuition

Before we jump into the mathy details, let's think about what we expect to happen. Broadly speaking, the pump is providing the same amount of "oomph" before and after the nozzle is turned off. But beforehand, some of that oomph goes to moving all that water. After, it's just pushing the water against the sides of the hose and the close nozzle. So intuitively we probably expect the pressure to increase a bit after closing the nozzle.

Math time!

We'll start by figuring out the components of Bernoulli's equation before the nozzle turns off. Since the pump is providing the same amount of oomph to the system, the total energy will be the same. So that will allow us to solve for the new static pressure at the nozzle.

Some prep work

Since we've already decided there's no elevation change here, we can ignore hydrostatic pressure. All we have to worry about are before and after static pressures (of which I've already told you the former) and hydrodynamic pressure. In other words, if we name $v_1$ and $v_2$ as the water speeds before and after shutting off the nozzle and say the static pressure is $p_1$ before and $p_2$ after, we've got:

\begin{align} p_1 + \frac12 \rho {v_1}^2 &= p_2 + \frac12\rho{v_2}^2 \end{align}

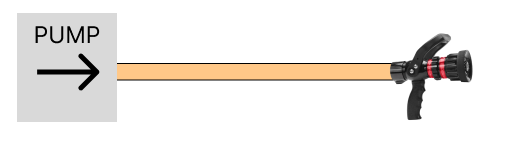

After

Since the water stops when we shut the nozzle off, $v_2$ is zero:

\begin{align} p_1 + \frac12 \rho {v_1}^2 &= p_2 \end{align}

This is already interesting to me! The pressure difference when you shut this nozzle off doesn't depend on the initial pressure, only on the water's speed! ³

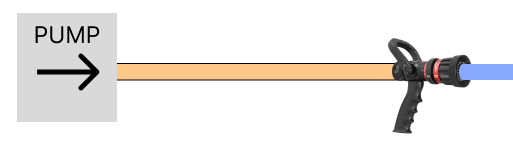

Before

Okay, let's dig into the left side of that equation.

Anyway, to find the water speed we'll need to do a bit of math to get the water's velocity from the flow rate. The basic question: if we're flowing 125 gpm, how much length of hose does the water flow down each minute?

For inch and three quarter hose, let's figure out the volume of water in a length of hose with length $L$:

\begin{align} V(L) &= A \cdot L\\ &= \pi r^2 \cdot L\\ &= \pi \left(\frac{1.75\ \text{in}}{2}\right)^2\cdot L\\ V(1\ \text{ft}) &= \frac{1.75^2\pi\ \text{in}^2}{4} \cdot 12\ \text{in}\\ &= 28.86\ \text{in}^3 \end{align}

Now with the power of modern search engines we can find that a gallon is 231 cubic inches (okay seriously, who came up with these units). So a foot of hose contains $28.86 / 231 = 0.125\ \text{gal}$ of water. That means that if we're flowing 125 gallons per minute, the water has to flow at a rate of 1000 feet per minute. That's a little over 11 miles per hour, so it seems like a reasonable result so far.

Now for the agonizing part: unit conversions. (Have I mentioned recently how lovely SI units are?) A psi is 6.89 kPa ($kPa = \frac{kg}{s^2m}$), and $1\ \frac{\text{m}}{\text{s}} = 197\ \frac{\text{ft}}{\text{min}}$. Let's figure out the hydrodynamic pressure before the nozzle gets turned off:

\begin{align} \frac12\rho{v_1}^2 &= \frac12\cdot\left(1000\ \frac{\text{kg}}{\text{m}^3}\right)\cdot \left(\frac{1000\ \text{ft}}{\text{min}} \cdot \frac{1\ \text{m}/\text{s}}{197\ \text{ft}/\text{min}} \right)^2\\ &= 12,900\ \frac{\text{kg}}{\text{s}^2\text{m}}\\ &= 12,900\ \text{Pa}\\ &= 12.9\ \text{kPa}\cdot\frac{1\ \text{psi}}{6.89\ \text{kPa}}\\ &= 1.87\ \text{psi} \end{align}

Drumroll please

So now that we know the hydrodynamic pressure, we can figure out the new pressure at the nozzle after it's turned off:

\begin{align} p_2 &= p_1 + \frac{1}{2}\rho{v_1}^2\\ &= 100\ \text{psi} + 1.87\ \text{psi}\\ &= 102\ \text{psi} \end{align}

The result: turning off the water at the nozzle and then allowing the system to equilibrate increases the pressure in the hose by just 2 psi. It's such a small increase that I had to fudge significant figures to make it noticeable at all. I find this immensely reassuring: it means that as a pump operator I basically don't have to worry about whether or how much water is flowing when I set the initial pressure on a hose line – it'll be approximately the same once the nozzle person opens the nozzle.

Final caveat: this doesn't account for water hammer, which is what happens before the system equilibrates. But that's the subject for another day.

Wrapping up

I hope to play a bit with some other examples of Bernoulli's equation, like pumping water up a hill or educting foam into a system. But for today, I'm gonna call it there. In short:

• Pressure can be viewed as energy per volume
• Bernoulli's equation describes energy conservation in smooth incompressible flow, by expressing pressure, kinetic energy, and gravitational potential energy all per volume.
• The magnitudes really do work out and shutting off a nozzle increases the pressure in that hose, but only slightly.

Citations

• I found this tec-science article very useful in understanding Bernoulli's equation and reframing pressure as energy per volume.
• ITCANet had a similarly useful writeup of the Bernoulli equation.
